Install deep center console in truck – for more comfort and better visibility

Why a deep seat console?

A comfortable and ergonomic seat is essential for us truck drivers. However, tall drivers often face the problem of the seat being too high – this can not only restrict visibility but also encourage an unhealthy sitting posture.

The solution: a deep seat console. It allows for a deeper seating position, ensuring more comfort and better visibility.

In this article, you will learn about the advantages of a deep seat console, what you need for installation, and how you can carry out the retrofitting yourself step by step.

Advantages of a deep seat console

A deep seat console has many advantages, especially for our tall drivers:

• Ergonomically better sitting posture: A deeper seating position relieves strain on the back and neck and prevents tension.
• Better visibility: If you are tall, you know the problem: the seat is too high, and forward visibility is restricted. A deeper position provides a remedy.
• More headroom: Especially in low cabs, a deep seat console can create additional vertical space.
• Individual adjustment: Most seat consoles are available in various versions – suitable for different truck & seat models.
• Easy retrofitting: Many seat consoles can be retrofitted without much effort – perfect for those who want to do it themselves.

And frankly: It just looks much better!

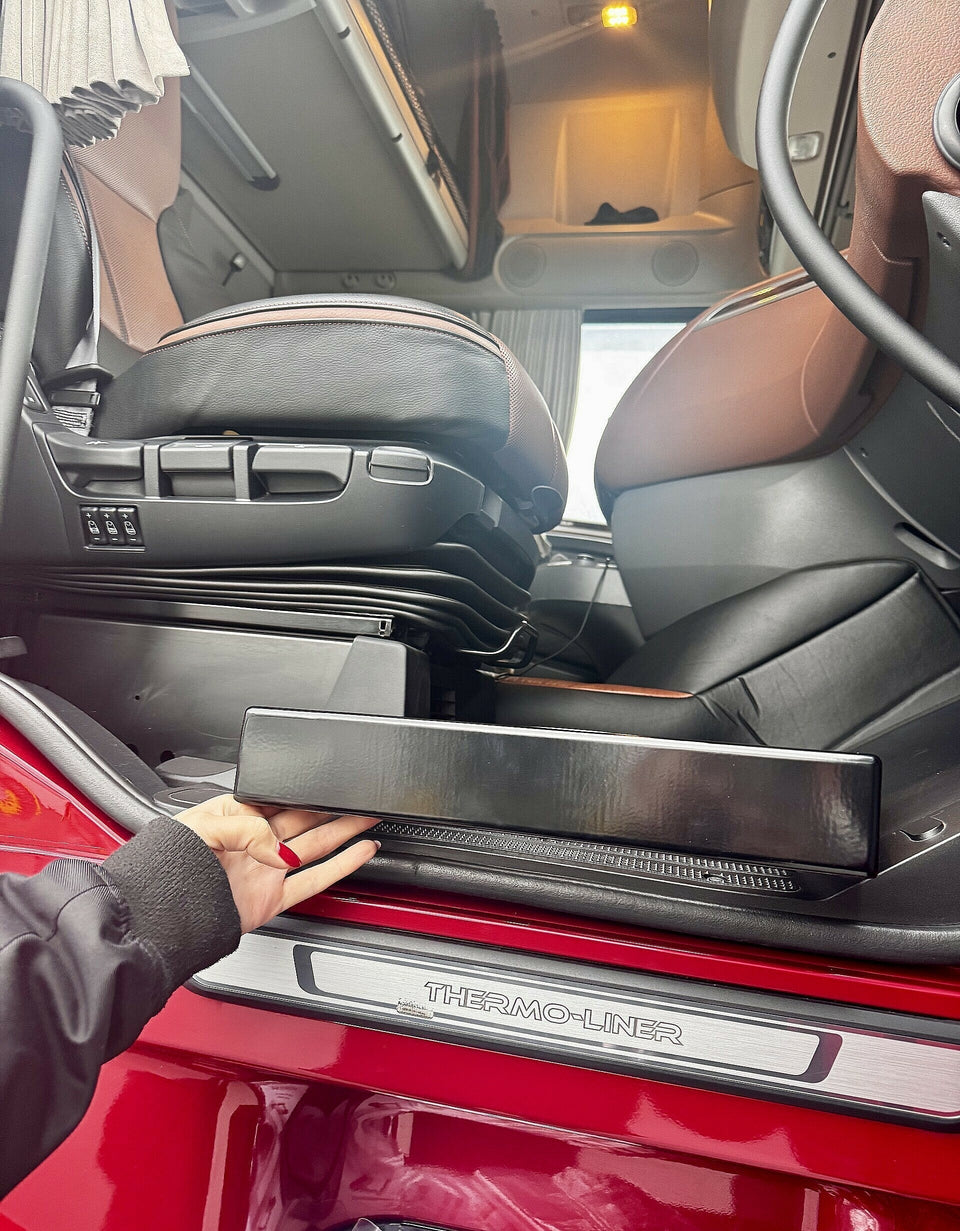

The only deep seat console with TÜV approval

Our deep seat console is the only one on the market for trucks that comes with a TÜV certificate – so you don't have to register it, but you can if you wish.
You stick the specific number yourself on the deep seat console, and the TÜV certificate belongs in the truck – this way, you are on the safe side during every check.

🛠 Required materials & tools:

• our deep seat console with TÜV approval (suitable for the truck & seat model)
• Wrench set (30s/40s Torx for 1/4 inch)
• Ratchet extension 1/4 inch & 13mm/14mm/15mm socket
• Torque wrench 1/4 inch (for tightening; mandatory according to manufacturer's instructions)
• Screws and nuts (the original ones, with which your factory console is also screwed)

Step-by-step guide: Installing a deep seat console in a truck

1. Remove old seat console:

   • Loosen all 6 attachment points connecting the seat to the old console.
   • If electrical connections or air lines are present (e.g., in air-suspended seats), carefully disconnect them.
   • Important: If the seat was raised beforehand, be careful! It can suddenly drop after disconnecting the air hoses – keep fingers out of the danger zone
   • carefully lift the seat and place it on the bed, for example
   • then loosen the 4 attachment points connecting the console to the floor

2. Mount seat console:

   • Position the new seat console so that it aligns with the existing drill holes.
   • Securely fasten the console with the original screws.
   • Tighten all screws to the recommended torque.

3. Reinstall seat

   • Place the seat on the new console, but do not fully fasten it yet.
   • If present, reconnect electrical connections and air lines.
   • Screw the seat firmly and check its stability.

4. Test and fine-tuning

   • Check the secure fit and retighten all screws if necessary.
   • Take a test drive to ensure the new position is optimal.

Here is a detailed video on how to install your deep seat console.

Frequently Asked Questions about retrofitting a deep seat console

1. Does a deep seat console fit every truck model?

   • Not every seat console is suitable for every model. Before purchasing, you should check if there is a suitable solution for your vehicle. Many manufacturers offer vehicle-specific variants.

2. Can I install the seat console myself or do I need a workshop?

   • If you are skilled with your hands, you can install the seat console yourself. If you are unsure, installation in a specialized workshop is recommended. There are also complete tool kits that simplify the installation.

3. Does the new seating position need to be registered in the vehicle documents?

   • This depends on the legal regulations of a country. Some modifications must be approved by TÜV. It is advisable to inquire in advance at a testing center. Due to the certificate, this console does not need to be registered; however, you must always carry the certificate in your truck, and the associated number must be visibly recognizable on the console.

4. Does every console from every manufacturer have a TÜV certificate?

   • No, as of today, the professionals at Special Interior are the only ones offering TÜV-certified deep seat consoles for Germany, and we are proud that you can get them from us.

Conclusion: More comfort with a deep seat console

A deep seat console can significantly improve the driving experience. It provides a more ergonomic seating position, better visibility, and more headroom. Installation, with the right preparation, is also feasible for skilled truck drivers. If unsure, the conversion can be done in a specialized workshop.

Have you already installed a deep seat console? Share your experiences in the comments!

Share this article with other drivers who want to improve their seating position!
